Introduction to Shaders

Learn how to create custom visual effects using shaders in MonoGame

In the previous chapters, we have built a complete snake-style game with animations, collision detection, audio, and scene management. While our game is fully functional, we can enhance the visual experience by implementing special effects to provide additional feedback to players. One powerful way to create these effects is through shaders.

In this chapter, you will:

Understand what shaders are and how they function in MonoGame.
Learn about different types of shaders including vertex and pixel shaders.
Explore shader models and cross-platform considerations.
Analyze the default shader template used in MonoGame.
Create a custom grayscale shader for visual feedback.

Important

This chapter is an introduction to shaders in MonoGame and will focus on the basic foundation of understanding how to create shader effect (.fx) files, loading them through the content pipeline, and using them in your game.

If you want to learn more about the shader language itself, a good place to start would be the High-level shader language (HLSL) documentation on Microsoft Learn.

For inspiration on what can be achieved with shaders, check out ShaderToy, which showcases real-time shader effects created by others. Note that ShaderToy uses OpenGL Shading Language (GLSL) which has some syntactic differences from HLSL, but the underlying concepts and mathematics are very similar for inspiration.

We can begin by understanding what shaders are and how they work in MonoGame.

Understanding Shaders

Shaders are small programs that run directly on your graphics card (GPU) instead of your computer's main processor (CPU). While traditional game code runs on the CPU and handles things like game logic and physics, shaders run on the GPU and focus specifically on how things are drawn to the screen. This separation allows for efficient processing and enables visual effects that would be too performance-intensive to calculate on the CPU.

Think of shaders as special instructions that tell your GPU exactly how to display each pixel or transform each vertex in your game. By customizing these instructions, you can create a wide variety of visual effects without having to change your original artwork.

Types of Shaders

There are two main types of shaders that you will work with in MonoGame:

Vertex Shaders

Vertex shaders process the corners (vertices) of the shapes that make up your game objects. They determine where these points should be positioned on the screen and can manipulate their positions to create effects like:

Waves or ripples in water
Swaying grass or trees
Character deformation for animations

Vertex shaders are especially important in 3D games, but they can also be used in 2D games for special effects that involve moving or distorting sprite positions.

Note

Even in 2D games like ours, MonoGame actually draws sprites by mapping textures onto simple 3D shapes called quads (rectangles made of two triangles). Each quad has four vertices, one at each corner. While we do not normally think about these vertices in 2D development, they are still there behind the scenes, and vertex shaders process them before rendering.

Pixel Shaders

Pixel shaders (also sometimes called fragment shaders) determine the actual color of each pixel that gets drawn to the screen. After the GPU figures out which pixels need to be drawn based on your geometry, the pixel shader calculates the final color for each of those pixels.

Pixel shaders are useful in 2D games for creating effects like:

Color adjustments (brightness, contrast, saturation)
Visual filters (grayscale, sepia, negative)
Special transitions (fades, dissolves, color shifts)
Dynamic lighting effects

For our Dungeon Slime game, we will focus primarily on pixel shaders since we want to create a color effect for our game over state.

Note

There are other types of shaders beyond vertex and pixel shaders, such as compute shaders, geometry shaders, and hull/domain shaders. These more advanced shader types enabled powerful features like physics simulations, procedural geometry, and complex post-processing effects. However, they are not currently supported in the standard MonoGame implementation and are beyond the scope of this beginner tutorial. As the MonoGame graphics pipeline evolves, support for these advanced shader types may be added in future versions.

The Shader Pipeline

To understand how shaders work, it helps to visualize how data flow through the rendering pipeline.

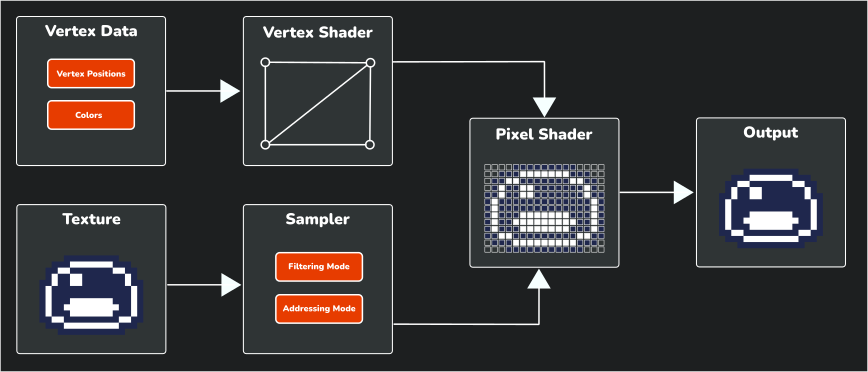

Figure 24-1: Basic shader pipeline showing how data flows through the rendering process

This diagram illustrates the fundamental steps of the shader pipeline:

Input Data: The process begins with input data that is sent to the GPU to render:
1. Vertex Data: The vertex data (positions, colors, etc.) that define the geometry of what is being drawn.
2. Texture: The image data that will be applied to the geometry.
Vertex Shader: Processes each vertex, calculating its final position on the screen and passing the data to the next stage.
Sampler: Controls how texture data is accessed, applying filtering (how pixels blend when scaled) and addressing (what happens at texture edges).
Pixel Shader: Takes the transformed vertices and sampled texture data to calculate the final color of each pixel.
Output: The final rendered image that appears on your screen.

Note

When working with SpriteBatch (2D) in MonoGame, the framework handles most of the vertex shader work automatically, which is why we will focus primarily on writing pixel shaders for visual effects.

Shader Languages and Cross-Platform Considerations

MonoGame uses the High-Level Shader Language (HLSL) for writing shader effects. HLSL is a C-like programming language developed by Microsoft for DirectX. As MonoGame also supports OpenGL which uses the OpenGL Shading Language (GLSL) instead of DirectX as it needs a way to make shaders work everywhere.

This is where MojoShader comes in. MojoShader is a library that automatically translates your HLSL shader code into whatever format the target platform requires (like GLSL for OpenGL platforms), this translation happens during the content build process when you compile your game.

Shader Models and Compatibility

Different platforms support different shader capabilities, known as "shader profiles." (Also known as "Shader Models" in some circles). When writing shaders for MonoGame, you need to consider compatibility across platforms.

MonoGame supports the following shader models when targeting DirectX platforms:

Vertex Shader Profile	Pixel Shader Profile
`vs_4_0_level_9_1`	`ps_4_0_level_9_1`
`vs_4_0_level_9_3`	`ps_4_0_level_9_3`
`vs_4_0`	`ps_4_0`
`vs_4_1`	`ps_4_1`
`vs_5_0`	`ps_5_0`

When targeting OpenGL platforms, MonoGame supports:

Vertex Shader Profile	Pixel Shader Profile
`vs_2_0`	`ps_2_0`
`vs_3_0`	`ps_3_0`

For maximum compatibility, it is best to target the following shader models:

For DirectX platforms: vs_4_0_level_9_1 (vertex) and ps_4_0_level_9_1 (pixel)
For OpenGL platforms: vs_3_0 (vertex) and ps_3_0 (pixel)

Note

In shader model notation, "vs" stands for "vertex shader" and "ps" stands for "pixel shader". The numbers represent the version and feature level of the shader model, with higher numbers indicating more advanced capabilities.

Note

MonoGame is currently planning to upgrade its graphics pipeline to support Vulkan and DirectX 12, which will significantly enhance graphical capabilities and shader support across platforms, enabling more advanced visual effects and better performance in future versions.

Understanding the Default Shader Template

When you create a new Sprite Effect (.fx) file in MonoGame using the MGCB Editor, it generates a default template file. To get a feel for the language used in shaders we can use this template to understand the foundation that we will build upon:

#if OPENGL
    #define SV_POSITION POSITION
    #define VS_SHADERMODEL vs_3_0
    #define PS_SHADERMODEL ps_3_0
#else
    #define VS_SHADERMODEL vs_4_0_level_9_1
    #define PS_SHADERMODEL ps_4_0_level_9_1
#endif

Texture2D SpriteTexture;

sampler2D SpriteTextureSampler = sampler_state
{
    Texture = <SpriteTexture>;
};

struct VertexShaderOutput
{
    float4 Position : SV_POSITION;
    float4 Color : COLOR0;
    float2 TextureCoordinates : TEXCOORD0;
};

float4 MainPS(VertexShaderOutput input) : COLOR
{
    return tex2D(SpriteTextureSampler,input.TextureCoordinates) * input.Color;
}

technique SpriteDrawing
{
    pass P0
    {
        PixelShader = compile PS_SHADERMODEL MainPS();
    }
};

Breaking down what each section of this template we can see:

Platform compatibility defines: The first block created defines for different shader model versions based on the target platform the shader gets compiled for (OpenGL vs DirectX).
```
#if OPENGL
    #define SV_POSITION POSITION
    #define VS_SHADERMODEL vs_3_0
    #define PS_SHADERMODEL ps_3_0
#else
    #define VS_SHADERMODEL vs_4_0_level_9_1
    #define PS_SHADERMODEL ps_4_0_level_9_1
#endif
```
Important

These preprocessor directives ensure your shader works across different platforms by defining appropriate shader models and semantics. When MonoGame compiles your shader:
- On OpenGL platforms (macOS, Linux, etc.), it uses the OPENGL definition, setting shader models to vs_3_0 and ps_3_0.
- On DirectX platforms (Windows, Xbox), it uses the DirectX path, setting shader models to vs_4_0_level_9_1 and ps_4_0_level_9_1.
This compatibility block directly impacts which HLSL features you can use in your shader. To maintain cross-platform compatibility, you should restrict yourself to features available at the lowest shader model you target. Using advanced features only available in higher shader models will require additional conditional compilation blocks and platform-specific code paths.
Texture declaration: This declares a Texture2D variable called SpriteTexture that will receive the texture being drawn by the SpriteBatch.
```
Texture2D SpriteTexture;
```
Sampler state: This creates a sampler2D called SpriteTextureSampler that controls how the shader reads pixel data from the texture received from the SpriteBatch. It defines properties like filtering and addressing modes for texture sampling, similar to the SamplerState we discussed in Chapter 18.
```
sampler2D SpriteTextureSampler = sampler_state
{
    Texture = <SpriteTexture>;
};
```
Vertex shader output structure: This defines a struct called VertexShaderOutput with three fields; Position, Color, and TextureCoordinates. This struct represents the data that is passed from the Vertex Shader function to the Pixel Shader function.
```
struct VertexShaderOutput
{
    float4 Position : SV_POSITION;
    float4 Color : COLOR0;
    float2 TextureCoordinates : TEXCOORD0;
};
```
This struct defines the passing of:
- The position of the vertex in homogeneous coordinates (x, y, z, w).
- The RGBA color of the vertex.
- The UV coordinates for texture mapping.
Tip

Notice the unusual syntax like float4 Position : SV_POSITION where there is a colon followed by something after each variable declaration. These are called semantics in HLSL and they are special labels that define how the data should be used by the graphics hardware or passed between shader stages (like from vertex shader to pixel shader).

For example, SV_POSITION tells the system "this contains the final screen position," COLOR0 means "this contains color data," and TEXCOORD0 means "this contains texture coordinates."

Semantics are required in HLSL to connect your shader variables with the graphics pipeline. Without them, the GPU would not know what each piece of data represents or how to use it correctly.
Pixel shader function: MainPS is the main Pixel Shader function that determines the color of each pixel. The default implementation simply samples the texture at the current texture coordinates and multiplies it by the vertex color, which is the color value supplied in the SpriteBatch.Draw method call.
```
float4 MainPS(VertexShaderOutput input) : COLOR
{
    return tex2D(SpriteTextureSampler,input.TextureCoordinates) * input.Color;
}
```
Technique and pass: This block defines a technique called SpriteDrawing with a single pass called P0. The pass itself defines which shader functions to use.
```
technique SpriteDrawing
{
    pass P0
    {
        PixelShader = compile PS_SHADERMODEL MainPS();
    }
};
```

Note

You may have noticed that the default shader does not define a vertex shader method that would execute and return back the VertexShaderOutput value that is used as the input for the Pixel Shader function.

When you are using SpriteBatch, MonoGame uses a built-in vertex shader under the hood that executes and creates this value to pass to the pixel shader function.

Understanding Techniques and Passes

The technique and pass sections might seem a bit confusing at first, but they are actually quite straightforward:

A technique is like a recipe for rendering something. Each technique has a name (in this case SpriteDrawing) and contains one or more passes.
A pass is a single step in that recipe. For simple effects, you often need just one pass (which is why the template only has P0), but more complex effects might use multiple passes to build up a final result.

Think of it like baking a cake:

The technique is the overall cake recipe.
Each pass is a step in that recipe (mix ingredients, bake, add frosting, etc).

In simple shaders, such as a grayscale shader, you would only need one technique with one pass. For more complex effects like blur, you might use multiple passes: one to blur horizontally and another to blur vertically.

Tip

For a real-world example of a blur shader with multiple techniques and passes, take a look at the Blur shader from the MonoGme Ship Game sample. This shader demonstrates how visual effects can be built by combining multiple rendering passes, with separate horizontal and vertical blur passes that work together to create a final blur effect.

The line PixelShader = compile PS_SHADERMODEL MainPS(); simply tells the GPU which pixel shader function to use for this pass (in this case the MainPS function) and compiles it using the appropriate shader model defined earlier.

Using Shaders in MonoGame

Now that we understand what shaders are, we can explore how to integrate them into a MonoGame project. Before implementing a shader in our game, we will first take a look at the process of loading and using shaders with SpriteBatch.

To understand, we will start with a basic example (not for the game itself):

Loading Shader Effects

Like other game assets such as textures and sounds, shader effects are loaded through the content pipeline using the ContentManager. When loading a shader, we specify Effect as the target type.

// Example of loading an effect
Effect exampleEffect = Content.Load<Effect>("exampleEffect");

You should typically load shader effects during your game's LoadContent method along with other game assets, and store them in class fields so they can be accessed during the Draw method.

Using Effects With SpriteBatch

Once you have loaded a shader effect, applying it to your game's visuals requires integrating it with the SpriteBatch. The effect is specified during the Begin call, but is actually applied during drawing operations or when End is called (depending on the SpriteSortMode).

// Specify the effect during Begin
spriteBatch.Begin(effect: exampleEffect);

// The effect will be applied when these draw calls are processed
spriteBatch.Draw(exampleTexture, texturePosition, Color.White);
spriteBatch.DrawString(exampleFont, "Hello World", textPosition, Color.White);

// For most SpriteSortMode values, actual drawing with the effect happens here
spriteBatch.End();

Setting Effect Parameters

Most shader effects have parameters that you can adjust to control their behavior. For example, the shader we will create for our game will have a Saturation parameter. You should set these parameters before the actual drawing occurs:

// Update the parameter value
exampleEffect.Parameters["Saturation"].SetValue(0.5f);

// Specify the effect during Begin
spriteBatch.Begin(effect: exampleEffect);

// Draw calls will use the effect with Saturation = 0.5f when processed

Implementing a Shader In Our Game

Now it is time to implement a shader for our game. The shader we will create is a simple grayscale effect that can be applied when the game is paused or there is a game over to provide visual feedback to the player that the game is inactive, the background will become grey offsetting the color of the Pause menu or other prompt.

Creating the Shader File

First, we need to create a new shader effect file and add it to our content project.

In the DungeonSlime project (your main game project), open the /Content/Content.mgcb content project file in the MGCB Editor.
In the MGCB Editor, right-click the Content now and choose Add > New Folder....
Give the new folder the name effects and click the Ok button.
Right-click on the new effects folder in the MGCB Editor and choose Add > New Item....
Choose Sprite Effect (.fx) from the type list and name the file grayscaleEffect, then click the Ok button.
Save the changes in the MGCB Editor the close it.

The steps above will create a new shader effect (.fx) file with the default template we discussed earlier. Now, we need to modify this template to create our grayscale effect.

Writing the Grayscale Shader

In the DungeonSlime project (your main game project), open the Content/effects/grayscaleEffect.fx file that we just created in your code editor and modify it as follows:

#if OPENGL
    #define SV_POSITION POSITION
    #define VS_SHADERMODEL vs_3_0
    #define PS_SHADERMODEL ps_3_0
#else
    #define VS_SHADERMODEL vs_4_0_level_9_1
    #define PS_SHADERMODEL ps_4_0_level_9_1
#endif

Texture2D SpriteTexture;

// A value between 0 and 1 that controls the intensity of the grayscale effect.
// 0 = full color, 1 = full grayscale.
float Saturation = 1.0;

sampler2D SpriteTextureSampler = sampler_state
{
    Texture = <SpriteTexture>;
};

struct VertexShaderOutput
{
    float4 Position : SV_POSITION;
    float4 Color : COLOR0;
    float2 TextureCoordinates : TEXCOORD0;
};

float4 MainPS(VertexShaderOutput input) : COLOR
{
    // Sample the texture
    float4 color = tex2D(SpriteTextureSampler, input.TextureCoordinates) * input.Color;

    // Calculate the grayscale value based on human perception of colors
    float grayscale = dot(color.rgb, float3(0.3, 0.59, 0.11));

    // create a grayscale color vector (same value for R, G, and B)
    float3 grayscaleColor = float3(grayscale, grayscale, grayscale);

    // Linear interpolation between he grayscale color and the original color's
    // rgb values based on the saturation parameter.
    float3 finalColor = lerp(grayscale, color.rgb, Saturation);

    // Return the final color with the original alpha value
    return float4(finalColor, color.a);
}

technique SpriteDrawing
{
    pass P0
    {
        PixelShader = compile PS_SHADERMODEL MainPS();
    }
};

The key modifications made to create this grayscale effect include:

Added a Parameter: A Saturation parameter was added that controls the intensity of the grayscale effect.
- When set to 0, the image will be fully grayscale.
- When set to 1, the image will be its original color.
- Values in between create a partial grayscale effect.
Modified the Pixel Shader: The MainPS function has been updated to:
- Sample the original color from the texture.
- Calculate a grayscale value by taking a weighted average of the RGB components.
- Create a grayscale color vector from this single brightness value.
- Use lerp (linear interpolation) to blend between the grayscale and original color's rgb values based on the Saturation parameter.
- Preserve the original alpha (transparency) value.
- Output the new color value with the grayscale effect for the pixel.

Understanding the Shader Code

The heart of the grayscale effect is this line:

// Calculate the grayscale value based on human perception of colors
float grayscale = dot(color.rgb, float3(0.3, 0.59, 0.11));

This uses the dot function to calculate the dot product between the color's RGB values and the vector \((0.3, 0.59, 0.11)\). This effectively calculates a weighted average where:

Red contributes 30%.
Green contributes 59%.
Blue contributes 11%.

Note

These specific weights are based on how the human eye perceives brightness in different colors. Green appears brighter to us than red, which appears brighter than blue.

The weighted values themselves are based on the formula that represents the luma component from the ITU-R BT.601 standard, which is commonly used for converting RGB images to grayscale based on human perception where:

\(Y'_{601} = 0.299R' + 0.587G' + 0.114B'\)

By using these weights, we get a natural looking grayscale conversion.

Then, we use linear interpolation with the lerp function to blend between this grayscale value and the original color's RGB values:

// Linear interpolation between he grayscale color and the original color's
// rgb values based on the saturation parameter.
float3 finalColor = lerp(grayscale, color.rgb, Saturation);

The lerp function blends between the first two parameters based on the third parameter (Saturation). When Saturation is 0, we get full grayscale, when it is 1, we get the original color.

Implementing the Grayscale Shader

Now that we have our grayscale shader, we can implement it in our game when the game is paused or a game over state occurs. In the DungeonSlime project (your main game project), open the Scenes/GameScene.cs file and perform the following:

First, add these fields to the GameScene class after the private GameState _state property:

// The grayscale shader effect.
private Effect _grayscaleEffect;

// The amount of saturation to provide the grayscale shader effect
private float _saturation = 1.0f;

// The speed of the fade to grayscale effect.
private const float FADE_SPEED = 0.02f;

Next, update the LoadContent method to load the grayscale shader:

public override void LoadContent()
{
    // Create the texture atlas from the XML configuration file
    TextureAtlas atlas = TextureAtlas.FromFile(Core.Content, "images/atlas-definition.xml");

    // Create the tilemap from the XML configuration file.
    _tilemap = Tilemap.FromFile(Content, "images/tilemap-definition.xml");
    _tilemap.Scale = new Vector2(4.0f, 4.0f);

    // Create the animated sprite for the slime from the atlas.
    AnimatedSprite slimeAnimation = atlas.CreateAnimatedSprite("slime-animation");
    slimeAnimation.Scale = new Vector2(4.0f, 4.0f);

    // Create the slime
    _slime = new Slime(slimeAnimation);

    // Create the animated sprite for the bat from the atlas.
    AnimatedSprite batAnimation = atlas.CreateAnimatedSprite("bat-animation");
    batAnimation.Scale = new Vector2(4.0f, 4.0f);

    // Load the bounce sound effect for the bat
    SoundEffect bounceSoundEffect = Content.Load<SoundEffect>("audio/bounce");

    // Create the bat
    _bat = new Bat(batAnimation, bounceSoundEffect);

    // Load the collect sound effect
    _collectSoundEffect = Content.Load<SoundEffect>("audio/collect");

    // Load the grayscale effect
    _grayscaleEffect = Content.Load<Effect>("effects/grayscaleEffect");
}

Next, update the TogglePause method so that when the game is paused, it sets the saturation value to 1.0f:

private void TogglePause()
{
    if (_state == GameState.Paused)
    {
        // We're now unpausing the game, so hide the pause panel
        _ui.HidePausePanel();

        // And set the state back to playing
        _state = GameState.Playing;
    }
    else
    {
        // We're now pausing the game, so show the pause panel
        _ui.ShowPausePanel();

        // And set the state to paused
        _state = GameState.Paused;

        // Set the grayscale effect saturation to 1.0f;
        _saturation = 1.0f;
    }
}

We also need to update the GameOver method so that when a game over state occurs, it sets the saturation value to 1.0f:

private void GameOver()
{
    // Show the game over panel
    _ui.ShowGameOverPanel();

    // Set the game state to game over
    _state = GameState.GameOver;

    // Set the grayscale effect saturation to 1.0f;
    _saturation = 1.0f;
}

Next, modify the Update method to handle the grayscale transition:

public override void Update(GameTime gameTime)
{
    // Ensure the UI is always updated
    _ui.Update(gameTime);

    if (_state != GameState.Playing)
    {
        // The game is in either a paused or game over state, so
        // gradually decrease the saturation to create the fading grayscale.
        _saturation = Math.Max(0.0f, _saturation - FADE_SPEED);

        // If its just a game over state, return back
        if (_state == GameState.GameOver)
        {
            return;
        }
    }

    // If the pause button is pressed, toggle the pause state
    if (GameController.Pause())
    {
        TogglePause();
    }

    // At this point, if the game is paused, just return back early
    if (_state == GameState.Paused)
    {
        return;
    }

    // Update the slime;
    _slime.Update(gameTime);

    // Update the bat;
    _bat.Update(gameTime);

    // Perform collision checks
    CollisionChecks();
}

Finally, update the Draw method to apply the shader when the game is paused or in a game over state:

public override void Draw(GameTime gameTime)
{
    // Clear the back buffer.
    Core.GraphicsDevice.Clear(Color.CornflowerBlue);

    if (_state != GameState.Playing)
    {
        // We are in a game over state, so apply the saturation parameter.
        _grayscaleEffect.Parameters["Saturation"].SetValue(_saturation);

        // And begin the sprite batch using the grayscale effect.
        Core.SpriteBatch.Begin(samplerState: SamplerState.PointClamp, effect: _grayscaleEffect);
    }
    else
    {
        // Otherwise, just begin the sprite batch as normal.
        Core.SpriteBatch.Begin(samplerState: SamplerState.PointClamp);
    }

    // Draw the tilemap
    _tilemap.Draw(Core.SpriteBatch);

    // Draw the slime.
    _slime.Draw();

    // Draw the bat.
    _bat.Draw();

    // Always end the sprite batch when finished.
    Core.SpriteBatch.End();

    // Draw the UI
    _ui.Draw();
}

Note

Notice how we set the shader parameters with the current saturation value every frame before beginning the sprite batch. This is because shaders are stateless; they do not remember any values from the previous draw cycle. Each time the GPU processes a shader, it only works with the parameters provided in that specific frame. Event if the saturation value has not changed since the last frame, we still need to send it to the shader again to apply it. This is why we constantly update the shader parameters in the Draw method rather than only when the value is changed.

With these changes, when the game enters a paused or game over state, the screen will gradually fade to gray using the grayscale shader effect. This provides a clear indication that the game is inactive during these states.


Figure 24-2: The game, now using a grayscale effect when paused or a game over state occurs to visually indicate that the game is inactive

Important Considerations

When working with effects in SpriteBatch, there are some important points to keep in mind:

Only one effect can be applied to a SpriteBatch.Begin/SpriteBatch.End at a time. If you need to use multiple effects for different sprites, you will need multiple SpriteBatch.Begin/SpriteBatch.End blocks.

// Begin sprite batch with effect.  All draw calls made within this begin/end block will have the effect applied.
spriteBatch.Begin(effect: exampleEffect1)
spriteBatch.Draw(texture, position, color);
spriteBatch.End();

// Begins sprite batch with a different effect.  All draw calls made within this begin/end block will have the specified effect applied.
spriteBatch.Begin(effect: exampleEffect2)
spriteBatch.DrawS(texture, position, color);
spriteBatch.End();

Along with #1 above, if you want to be selective and only have the effect apply to some sprites and not others, you will still need to use multiple SpriteBatch.Begin/SpriteBatch.End blocks

// Begin sprite batch with effect.  All draw calls made within this begin/end block will have the specified effect applied.
spriteBatch.Begin(effect: exampleEffect)
spriteBatch.Draw(texture, position, color);
spriteBatch.End();

// Begin sprite batch without effect so that draw calls made here have no effect applied.
spriteBatch.Begin();
spriteBatch.Draw(texture, position, color);
spriteBatch.End();

Even though the effect to use is specified during the SpriteBatch.Begin call, the actual effect is not applied until all batched items are processed when SpriteBatch.End is called. This means if you adjust parameter values of the effect between draw calls, only the last parameter value set is what is applied to all draw calls within the SpriteBatch.Begin.

// Begin sprite batch with effect.
// Specifying the effect here is only specifying what effect to apply when batching ends
spriteBatch.Begin(effect: exampleEffect);

// Change a parameter and draw something
exampleEffect.Parameters["ExampleParameter"].SetValue(1.0f);
spriteBatch.Draw(texture1, position, color);

// Change the parameter to a different value and draw something else.
exampleEffect.Parameters["ExampleParameter"].SetValue(0.5f);
spriteBatch.Draw(texture2, position, color);

// The actual effect is applied to the draw calls here, when End is called.
// This means the value of the parameter that will be used in the effect
// is the last parameter value set (0.5f) which will be applied to both
// draw calls instead of each of them having different parameter values.
spriteBatch.End();

There is an exception to #2 above. In Chapter 06: Working with Textures, we discussed the different SpriteSortMode values that can be used when rendering. From this chapter, we learned that when using SpriteSortMode.Immediate that when a draw call is made, it is immediately flushed to the GPU and rendered to the screen, ignoring batching. This means that if you are using SpriteSortMode.Immediate then changing parameters between draw calls will apply the parameter change after it is made for the next draw call.

Important

As mentioned in Chapter 06, SpriteSortMode.Immediate can cause performance issues and should only be used when absolutely necessary, as Immediate mode effectively disables batching.

// Begins sprite batch with the effect AND intentionally specifying SpriteSortMode.Immediate
spriteBatch.Begin(effect: exampleEffect, sortMode: SpriteSortMode.Immediate);

// Change a parameter and draw something.  Since we are in immediate mode, the value of the parameter is used because the shader is immediately applied to the draw call.
exampleEffect.Parameters["ExampleParameter"].SetValue(1.0f);
spriteBatch.Draw(texture1, position, color);

// Change the parameter to something else.  Since we are in immediate mode, the new value of the parameter is used because the shader is immediately applied to the draw call.
exampleEffect.Parameters["ExampleParameter"].SetValue(0.5f);
spriteBatch.Draw(texture2, position, color);

// Since immediate mode is used, batching is not performed so the effect was applied immediately on the draw calls above and not here during the end call.
spriteBatch.End();

Conclusion

This chapter explored the fundamentals of creating and adding a shader to MonoGame by implementing a grayscale shader effect. We covered several important concepts:

Shaders are specialized programs that run directly on the GPU, allowing for efficient visual effects that would be too performance-intensive to calculate on the CPU.
Effect parameters allow runtime control of shader behavior.
In MonoGame, shaders are written in High-Level Shader Language (HLSL) and can be loaded through the content pipeline like other game assets.
Pixel shaders determine the color of each rendered pixel, making them ideal for effects like our grayscale shader.
The timing of the shader application depends on the SpriteSortMode used with SpriteBatch, with most effects being applied during the SpriteBatch.End call.

While we only focused on a simple grayscale effect, the principles learned here can be used to start learning more about shaders and creating more complex visual effects.

Test Your Knowledge

What is the primary difference between pixel shaders and vertex shaders in the context of 2D games?

Pixel shaders determine the color of each pixel being rendered, making them ideal for visual effects like grayscale, color tinting, and image filters. Vertex shaders manipulate the position of vertices, which can be used for effects like distortion, waves, or character deformation. In 2D games, pixel shaders are more commonly used for visual effects while vertex shaders are less frequently needed.
What function is used in the shader to blend between grayscale and the original color, and how does it work?

The lerp function (linear interpolation) is used to blend between grayscale and original colors. It takes three parameters: the first is the grayscale color vector, the second is the original color's RGB values, and the third is the Saturation parameter (between 0 and 1). When Saturation is 0, the output is fully grayscale; when it is 1, the output is the original color; values in between create a partial blend of both.
Why can changing effect parameters between SpriteBatch.Draw calls sometimes not work as expected, and what is the exception to this?

Changing effect parameters between draw calls typically does not work as expected because the effect is actually applied during SpriteBatch.End, not during the draw calls. The last parameter value set before end is applied to all draw calls in the batch. The exception is when using SpriteSortMode.Immediate, which causes each draw call to be processed immediately rather than batched, allowing parameter changes to be applied between individual draw calls.

Table of Contents

Introduction to Shaders

Important

Understanding Shaders

Types of Shaders

Vertex Shaders

Note

Pixel Shaders

Note

The Shader Pipeline

Note

Shader Languages and Cross-Platform Considerations

Shader Models and Compatibility

Note

Note

Understanding the Default Shader Template

Important

Tip

Note

Understanding Techniques and Passes

Tip

Using Shaders in MonoGame

Loading Shader Effects

Using Effects With SpriteBatch

Setting Effect Parameters

Implementing a Shader In Our Game

Creating the Shader File

Writing the Grayscale Shader

Understanding the Shader Code

Note

Implementing the Grayscale Shader

Note

Important Considerations

Important

Conclusion

Test Your Knowledge
